| 産品型号 | 産品型号 | 传輸速率 | 端口數 | 封裝類型 | PIN腳个數 | PIN腳間距 | PoE分級 | 工作温度 | 隔離高壓等級 | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

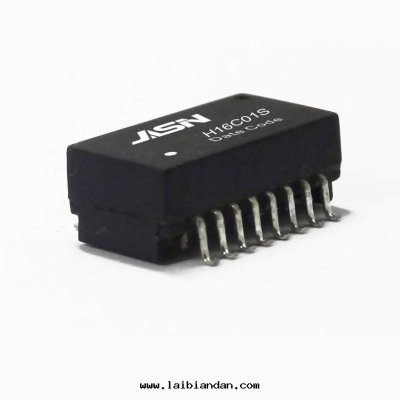

H16C01S | 10/100Base-T | SINGLE | SMD | 16Pin | 1.27mm | PoE15W | 0℃to+70℃ | 1500V |  |
 |

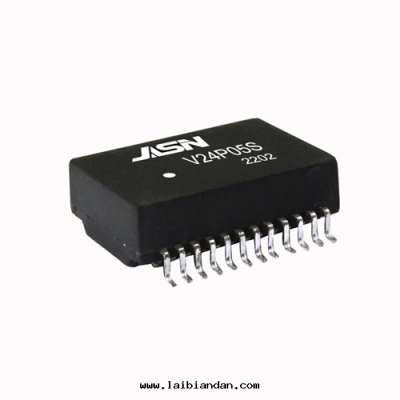

V24P05S | 2.5GBase-T | SINGLE | SMD | 24Pin | 1.00mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |

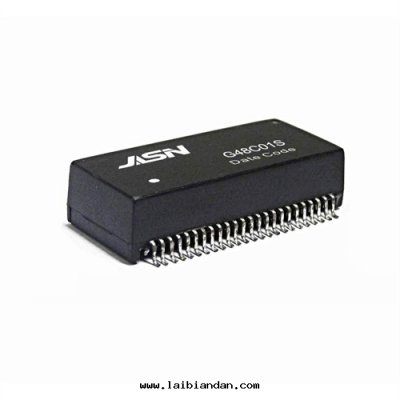

G48C01S | 1000Base-T | DUAL | SMD | 48Pin | 1.02mm | PoE15W | 0℃to+70℃ | 1500V | |
 |

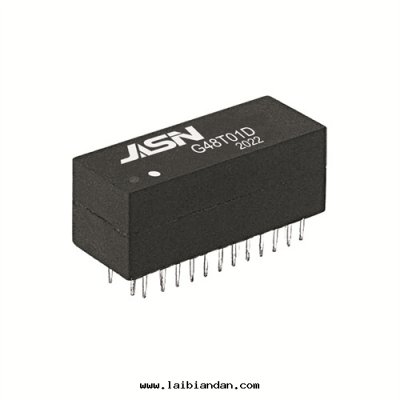

G48T01D | 1000Base-T | DUAL | DIP | 48Pin | 2.00mm | PoE15W | 0℃to+70℃ | 1500V | |
 |

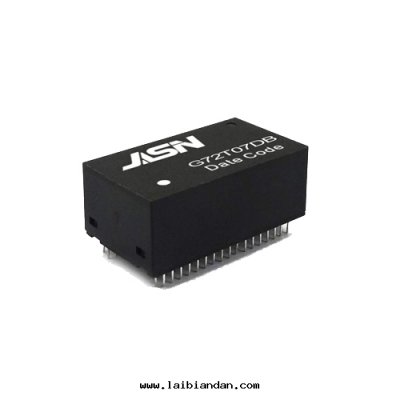

G72T07DB | 1000Base-T | QUAD | DIP | 72Pin | 1.78mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |

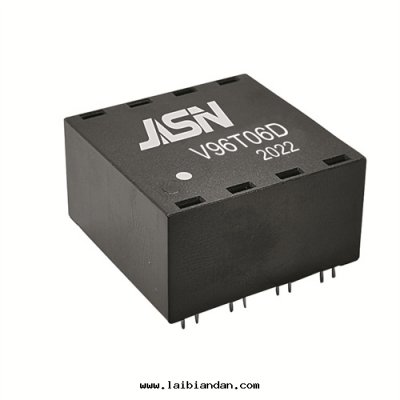

V96T06D | 2.5GBase-T | QUAD | DIP | 96Pin | 1.80mm | 4PPoE30W | 0℃to+70℃ | 1500V | |
 |
T24C03SP | 10GBase-T | SINGLE | SMD | 24Pin | 0.99mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |
T24P02S | 10GBase-T | SINGLE | SMD | 24Pin | 1.00mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |
T24P03SW | 10GBase-T | SINGLE | SMD | 24Pin | 1.00mm | Non-PoE | ‘-40℃to+85℃ | 1500V | |
 |
T24C16S | 10GBase-T | SINGLE | SMD | 24Pin | 1.27mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |
T24C05SUW | 10GBase-T | SINGLE | SMD | 24Pin | 1.27mm | 4PPoE100W | ‘-40℃to+125℃ | 1500V | |
 |
T48C01S | 10GBase-T | DUAL | SMD | 48Pin | 1.02mm | Non-PoE | 0℃to+70℃ | 1500V | |
