OCL: |
150 uH ~ 450uH. @100KHz/0.1V (-40 C to+125C) |
|
Hi-Pot : |
4300VDC 1mA 60Sec |
|
Turns Ratio: |
1:1±2% |
|
LK: |
0.5uH Max @100KHz/0.1V |
|
DCR: |
0.45 ohm Max. @Transformer side |
|
0.85 ohm Max. @CM choke side |
|
|
Insertion Loss: |
-0.25dB Max 4MHz |
|
Return Loss: |
-22dB Min @4MHz (Z out= 100Q) |
|
CMRR: |
-35dB Min @1- 100MHz |
|
-28dB Min @100-200MHz |
|
|

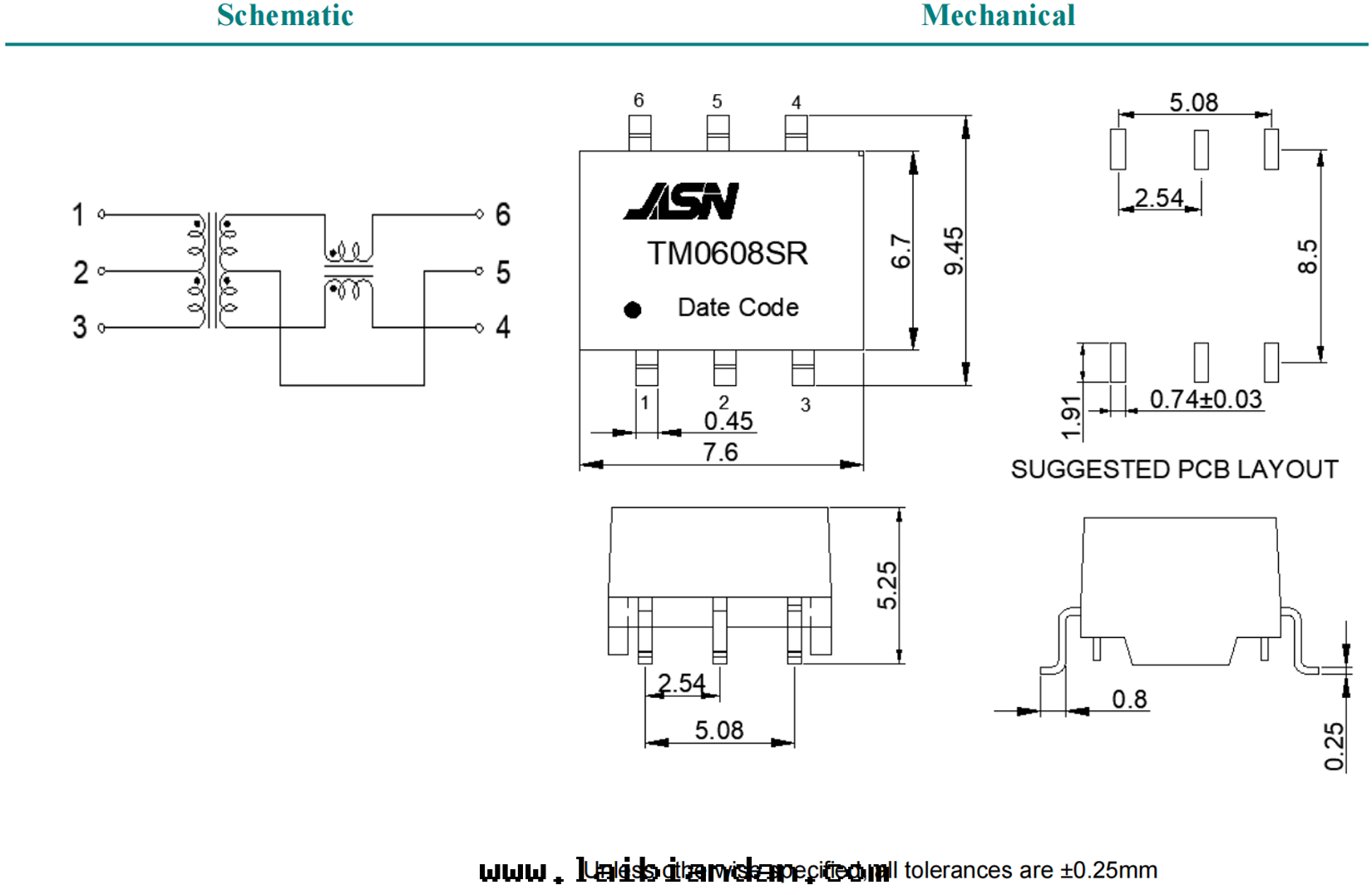

Design Construction: |
Functional insulation ; Working voltage 1000VDC; |
